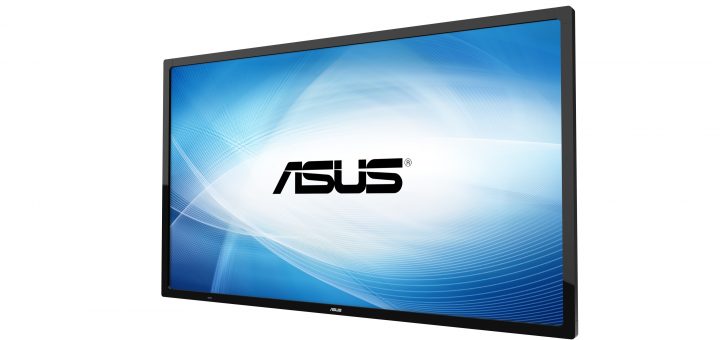

ASUS SP6540-T 65 Zoll Touchscreen Display

ASUS SP6540-T

65″ Interactive Whiteboard Touch Display

  • Intuitive 4-point touch display
  • Full HD 1920 x 1080 panel with wide viewing angles
  • Energy-efficient LED-backlit panel with 350 nits brightness
  • Extensive connectivity, built-in 10W stereo speakers, and VESA wall mount-compatible
  • USB port to power a Miracast dongle

Touch Makes Communication Better

The ASUS SP6540-T Interactive Whiteboard Touch Display utilizes the latest touch solutions and supports fingertip and stylus input to give you more engaging levels of interactivity. The SP6540-T features a Full HD 1920 x 1080p display with wide 178-degree viewing angles. Four-point touch capabilities let you get creative with friends and colleagues, allowing you to share ideas or mark notes onscreen on the spot. With a max brightness of 350 nits, it is bright enough to be used in meeting rooms, so there’s no need to dim the lights.
Whether you’re engaging a small group or a larger audience, the SP6540-T helps you get your message across in new and innovative ways. It is suited for a myriad of uses, and is ideal for use in classrooms, boardrooms, or in TV studios.

Extensive Connectivity Options and Wireless Capabilities

The SP6540-T easily connects to a PC or laptop thanks to extensive connectivity options like DisplayPort, HDMI, DVI-D, and D-Sub. The USB port provides a 5V DC to power a Miracast dongle so you can easily stream documents, presentations, and other files stored in your mobile device.

Energy-efficient LED-backlit Panel on a Robust Metal Chassis

The LED-backlit panel used in the SP6540-T is 20 to 50% more energy efficient than conventional CCFL backlight displays. It is mounted on a scratch-resistant metal chassis to give you commercial-grade durability and reliability. It is VESA mount-compatible as well, and can be easily hung on any wall.

Powerful Built-in 10W Speakers

The SP6540-T features built-in 10W speakers to give you a complete audiovisual experience. The speakers‘ rear placement maintains the display’s streamlined profile, and gets rid of the need for external speakers.

Technische Daten

Spezifikation SP6540-T
Bildschirmdiagonale 65″
Bildschirmtechnologie
Auflösung / Wiederholrate 1920 x 1080 / 60 Hz
Helligkeit 350 nits
Kontrastverhältnis 4000:1
Blickwinkel 178° / 178° (H/V)
DisplayPort-Eingang 1x
DisplayPort-Ausgang
HDMI-Eingang 1x
DVI-Eingang 1x
DVI-Ausgang
D-sub-Eingang (RGB) 1x
D-sub-Ausgang (RGB)
Component-Eingang
CVBS-Eingang
CVBS-Ausgang
Audio-Eingänge (Stereo) 1x 3,5 mm Klinke
Audio-Ausgänge (Stereo) 1x 3,5 mm Klinke
Lautsprecher-Ausgänge
Integrierte Lautsprecher 2x 10 Watt (Stereo)
Steuerung 1x Infrarot-Fernbedienung, 1x RS232C (in/out)
Umgebungslichtsensor
Temperatursensor
Erweiterungen USB 2.0 (0,5 A)
Leistungsaufnahme 220 W (typ.) / 0,5 W (Standby)
Abmessungen 1507 x 882 x 96 (mm)
Rahmen 30,5 mm (alle Seiten)
Gewicht 40 kg (Netto)
Wandhalterung 400 x 400 (mm)
